The TLI-S1200 is a compact, automated optical inspection system designed to capture, adjust, identify, check and measure images on any flat materials, such as SMT stencils.
Hardware Characteristics
◆ Utilizes well-developed, large-scale, highly accurate scanning components, capable of interfacing any scanner that supports the TWAIN standard.
◆ Data interface is capable of importing all electronic assembly data files or images. Output provides accurate checking and measuring reports. CP/CPK statistical data and vector graphic file output are also available as options.
Software Characteristics

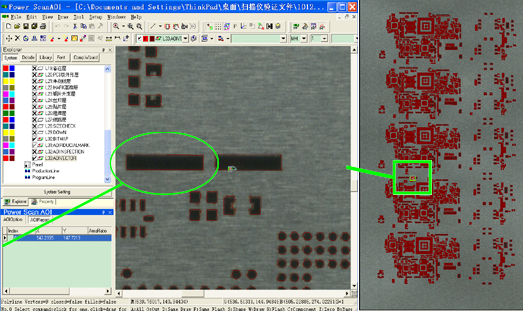

◆ PowerAOI - This software allows the user to inspect SMT stencils either pre-production or post cleaning for clogged, partially clogged or damaged apertures. This effectively removes the human impact on the inspection procedure and provides an advanced checking means to output accurate reports, ensuring the process is under control and providing stencil quality traceability.
◆ PowerScan - This software provides a means to measure the positional accuracy and aperture size precision of SMT stencils. As an extended option, this software can be configured to output CP/CPK data and statistical diagrams. This software can also be used to reverse engineer the measurements of any flat materials including PCB's and SMT stencils (option).
Application
◆ Identifying defects in SMT stencils such as missing apertures, porous or wrong shaped apertures, or post cleaning contamination.
◆ nspecting SMT stencils for aperture count, aperture size and positional accuracy. Especially effective as a final QC tool for stencil manufacturers or an incoming inspection tool for stencil users.
◆ Used in the reverse engineering of PCB's, and outputting Gerber files to be used for all stages of PCB assembly including surface mount machine programming.
◆ Measuring and checking any flat materials.
Technical Specifications
Model |
TLI-S1200 |
Max. Scanning Area |
800mm×600mm |
Single Scanning Area |
420mm×297mm |
Data Interface |
SCSI, USB |
Optical Resolution |
600×1200dpi(Standard Configuration) 2400×4800dpi(Advanced Configuration) |
Input Data Format |
RS274D/X Gerber, DXF, HPGL, BMP, JPG, TIFF, any PCB file (option) |
Output Data Format |
CSV, BMP, JPG (report), RS274X Gerber (option), DXF (option) |
Power Consumption |
250W |
Operating Temperature |
20±3℃ |
Operating Humidity |
10%-50%, no condensation |
Power Requirement |
220VAC, 50/60Hz, 10A, Single Phase |
Machine Size (L×W×H) |
1200mm×900mm×170mm |
Weight |
60Kg |
Option |
Light box |
Origin |
China |
Note: 1) PowerAOI and PowerScan are pure software products, not including any hardware products. Each of them can be purchased independently.
2) The system includes hardware and PowerAOI software. PowerScan software can be added based on user's requirements.
|
|
